High throughput performance and contamination-free powder coating

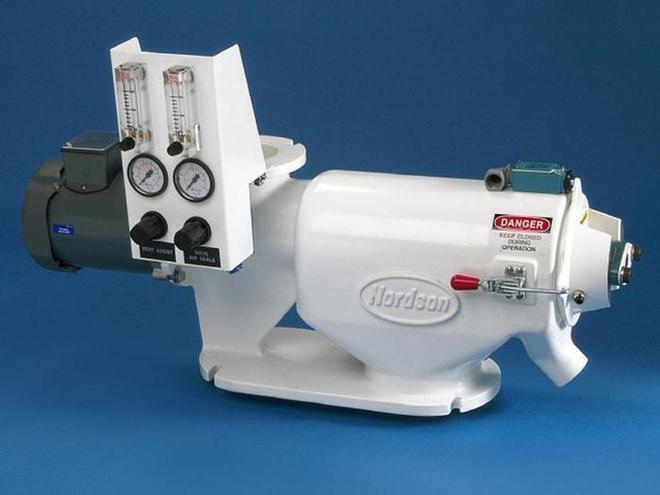

The NRPS-200 sieve provides coaters with high sieving capacity and reliable operation. With a total screen area of 94 square inches and standard screen opening size of 250 micron (60 mesh), the Nordson sieve can effectively handle a minimum of 327 kg/hr of conventional powder (720 lbs/hr).
Description
Features and Advantages
- Large screen area delivers high throughput capacity.
- Visual indicators of proper screen tensioning for optimum performance and long life.
- Powder coated inside and outside surfaces for easy cleaning.
- Air seals prevent powder contamination of bearings and motor for maximum durability.
- Convenient airflow control panel available for proper air seal operation and bearing protection.
- Electrical safety interlock prevents accidental sieve operation while end cap is open.
- Wide range of screens available to fit varying operating requirements.
- Proper Screen Tensioning
- To optimize sieve performance and prolong service life, the screen cage of the NRPS-200 sieve provides visual indication of proper screen tensioning.
Easy Maintenance
The end cap of the NRPS-200 sieve is designed for easy access and removal for inspection. Powder coated inside and outside surfaces of the durable, cast aluminum sieve body facilitate cleaning. The screen cage and impeller are easily removed through the end door for inspection and maintenance. During reinstallation, the screen cage securely locks in place to assure proper alignment for optimum performance.
Reliable Operation
Effective air seals protect bearings in the end door and the motor of the sieve from powder contamination. An optional air flow control panel allows users to set the required airflow to the seals. For reliable bearing and motor protection, regulators and flow meters on the control panel permit adjustment for proper airflow, should the compressed air line pressure change.
